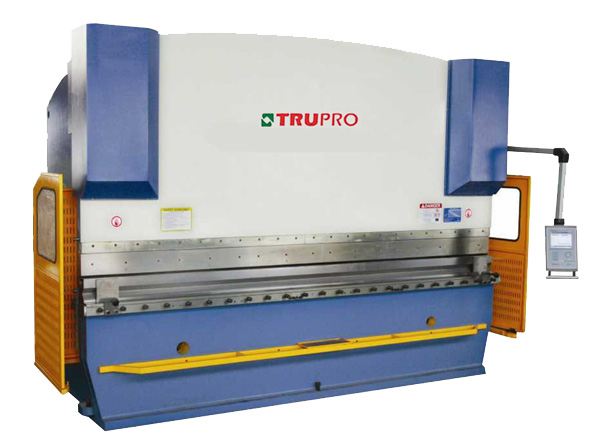

Folding Machine
l Equipped with DELEM control system (made in NETHERLALND) raster displayer, hydraulic value, servo-motor are all importing products.
l Adopting reliable elector hydraulic proportional synchronization servo and its parallelism precision could reach 0.02mm. it can support eccentric load.
l Ram stroke (Y1. Y2) and back gauge (X,R,Z) are controlled by controller.
l Back gauge is adopted ball-screw and linear guide way. The repeat positioning precision of X is very high and act smartly.
model
Nominal
Force
(kN)
Length of work
bench
(mm)
Distance between vertical columns
(mm)
Throat depth
(mm)
Sliding block range travel
(mm)
Max. opening height
(mm)
Motor power
(KW)
Net weight
(kg)
Dimensions
(L×W×H)
(mm)
100/3200
1000
3200
2900
320
200
400
7.5
8100
3450*1500*2680
100/4000
1000
4000
3700
320
200
400
7.5
8300
4200*1560*2710
160/3200
1600
3200
2880
320
200
400
11
10500
3450*1550*2760
160/4000
1600
4000
3680
320
200
400
11
12000
4250*1550*2820
200/3200
2000
3200
2880
320
200
400
15
10500
3450*1600*2760
200/4000
2000
4000
3680
320
200
400
15
12000
4250*1600*2820
250/3200
2500
3200
2770
400
250
450
18.5
14000
3500*1800*3500
250/4000
2500
4000
3560
400
250
450
18.5
15500
4470*1970*3350
300/3200
3000
3200
2760
400
300
500
22
16500
3560*1970*3350
300/4000
3000
4000
3560
400
300
500
22
22000
4600*2000*3500
400/3200
4000
3200
2750
400
300
500
30
25000
3600*2100*3400
400/4000
4000
4000
3550
400
300
500
30
29800
4600*2100*3500
500/4000
5000
4000
3500
400
320
630
37
32000
4600*2180*3600
500/5000
5000
5000
4500
400
320
630
37
36000
5600*2180*3600
