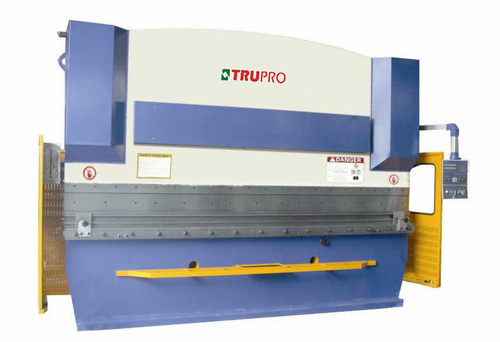

Folding Machine
.jpg)
l Mechanical adjusting X. Y axis display read the adjusted positioning of back gauge and ram.
l Torque shaft is designed of rigidity with high solidness, assuring the synchronized movements of ram.
l Built-in mechanical block. Assuring the precise positioning of ram.
model
Nominal
Force
(kN)
Length of work
bench
(mm)
Distance between vertical columns
(mm)
Throat depth
(mm)
Sliding block range travel
(mm)
Max. opening height
(mm)
Adjusting range of sliding block travel(mm)
Motor power
(KW)
Net weight
(kg)
Dimensions
(L×W×H)
(mm)
FLD-67Y
-40/2000
400
2000
1800
200
100
340
80
4
3300
2555*1469*2000
FLD -67Y
-40/2500
400
2500
2300
200
100
340
80
4
3600
3055*1469*2000
FLD -67Y
-63/2500
630
2500
2260
250
100
355
80
5.5
4800
3100*1725*2355
FLD -67Y
-63/3200
630
3200
2960
250
100
355
80
5.5
5600
3800*1725*2355
FLD -67Y
-80/2500
800
2500
2240
250
100
355
80
7.5
5900
3100*1725*2240
FLD -67Y
-80/3200
800
3200
2940
250
100
355
80
7.5
6600
3800*1725*2240
FLD -67Y
-80/4000
800
4000
3740
250
100
355
80
7.5
7800
4600*1765*2400
FLD -67Y
-100/2500
1000
2500
2200
320
120
415
100
7.5
7300
3150*1850*2530
FLD -67Y
-100/3200
1000
3200
2900
320
120
415
100
7.5
8100
3850*1850*2650
FLD -67Y
-100/4000
1000
4000
3700
320
120
415
100
7.5
9200
4750*1850*2675
FLD -67Y
-125/2500
1250
2500
2200
320
120
415
100
7.5
7800
3150*1850*2530
FLD -67Y
-125/3200
1250
3200
2900
320
120
415
100
7.5
8150
3850*1850*2650
FLD -67Y
-125/4000
1250
4000
3700
320
120
415
100
7.5
9800
4750*1850*2675
FLD -67Y
-160/3200
1600
3200
2840
320
200
455
160
11
12000
3900*1940*2630
FLD -67Y
-160/4000
1600
4000
3640
320
200
455
160
11
14000
4700*1940*2680
FLD -67Y
-160/6000
1600
6000
5640
320
200
455
160
15
19500
6700*234*3100
FLD -67Y
-200/3200
2000
3200
2800
320
200
455
160
15
15800
3900*2000*2700
FLD -67Y
-200/4000
2000
4000
3600
320
200
455
160
15
17200
4900*2000*2990
FLD -67Y
-200/6000
2000
6000
5600
320
200
455
160
15
24600
6900*2100*3700
FLD -67Y
-250/3200
2500
3200
2770
400
250
560
200
18.5
19200
3950*2200*3100
FLD -67Y
-250/4000
2500
4000
3570
400
250
560
200
18.5
21500
4950*2200*3300
FLD -67Y
-250/6000
2500
6000
5570
400
250
560
200
22
28800
6950*2300*3700
FLD -67Y
-300/3200
3000
3200
2720
400
250
560
200
22
22800
4000*2300*3500
FLD -67Y
-300/4000
3000
4000
3520
400
250
560
200
22
24900
4800*2300*3600
FLD -67Y
-300/6000
3000
6000
5520
400
250
560
200
30
32000
6800*2600*3800
