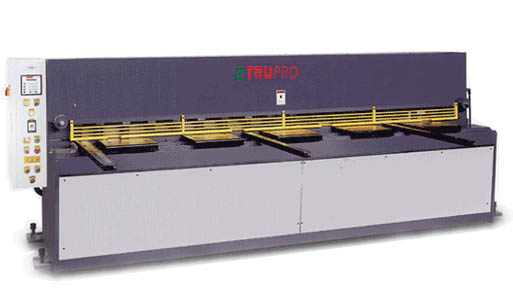

Shearing Machine
Model
SRS-0435
SRS -0535
SRS -0635
SRS -0835
SRS -1035
SRS -1335
CUTTING CAPACITY
MILD STEEL (mm)
3.5 x 1320
3.5 x 1580
3.5 x 2080
3.5 x 2540
3.5 x 3100
3.5 x 4080
STAINLESS STEEL (mm)
2.2 x 1320
2.2 x 1580
2.2 x 2080
2.2 x 2540
2.2 x 3100
2.2 x 4080
STROKES PER MINUTE (S.P.M.)
35-47
32-44
28-40
26-36
24-34
16-24
HOLD-DOWNS
NUMBERS
8
9
11
13
16
18
PRESSURE (tons)
2.5
3.5
4.2
6.7
8.2
9.2
FRONT (mm)
1000
1000
1000
1000
1000
1000
BACK (mm)
600
600
600
600
600
600
TOP BLADE
HYDRAULIC ADJUSTMENT RAKE ANGLE
TOP-BLADE RAKE ANGLE
1/2 - 2°
1/2 - 2°
1/2 - 2°
1/2 - 2°
1/2 - 2°
1/2 - 2°
MOTOR (HP)
7.5
7.5
7.5
10
10
15
OIL-TANK CAPACITY (gallons)
25
30
35
40
40
40
SHIPPING WEIGHT (kgs)
1800
2200
3000
3600
4200
4800
APPROX SIZE OF CASE
2300 x 1200 x 1600
2600 x 1200 x 1600
3000 x 1200 x 1650
3350 x 1250 x 1650
4000 x 1250 x 1650
5000 x 1250 x 1650
Model
SRS -0445
SRS -0545
SRS -0645
SRS -0845
SRS -1045
SRS -1345
CUTTING CAPACITY
MILD STEEL (mm)
4.5 x 1320
4.5 x 1580
4.5 x 2080
4.5 x 2540
4.5 x 3100
4.5 x 4080
STAINLESS STEEL (mm)
3.5 x 1320
3.5 x 1580
3.5 x 2080
3.5 x 2540
3.5 x 3100
3.5 x 4080
STROKES PER MINUTE (S.P.M.)
30-42
28-40
24-36
22-32
20-30
16-24
HOLD-DOWNS
NUMBERS
8
9
11
13
16
18
PRESSURE (tons)
3.2
4.5
5.6
7.8
9.6
10.1
FRONT (mm)
1000
1000
1000
1000
1000
1000
BACK (mm)
600
600
600
600
600
600
TOP BLADE
HYDRAULIC ADJUSTMENT RAKE ANGLE + BLADE CLEARANCE MANUAL ADJUSTOR
TOP-BLADE RAKE ANGLE
1/2 - 2°
1/2 - 2°
1/2 - 2°
1/2 - 2°
1/2 - 2°
1/2 - 2°
MOTOR (HP)
10
10
15
15
15
20
OIL-TANK CAPACITY (gallons)
25
30
35
40
40
40
SHIPPING WEIGHT (kgs)
2000
2400
3300
3800
4500
5300
APPROX SIZE OF CASE
2300 x 1200 x 1600
2600 x 1200 x 1600
3300 x 1200 x 1650
3350 x 1250 x 1650
4000 x 1250 x 1650
5000 x 1250 x 1650
Model
SRS -0465
SRS -0565
SRS -0665
SRS -0865
SRS -1065
SRS -1365
CUTTING CAPACITY
MILD STEEL (mm)
6.5 x 1320
6.5 x 1580
6.5 x 2080
6.5 x 2540
6.5 x 3100
6.5 x 4080
STAINLESS STEEL (mm)
4.5 x 1320
4.5 x 1580
4.5 x 2080
4.5 x 2540
4.5 x 3100
4.5 x 4080
STROKES PER MINUTE (S.P.M.)
30-42
28-40
24-36
22-32
20-30
16-24
HOLD-DOWNS
NUMBERS
8
9
11
13
16
18
PRESSURE (tons)
3.2
4.5
5.6
13
16
18
FRONT (mm)
1000
1000
1000
1000
1000
1000
BACK (mm)
600
600
600
POWER BACK GAUGE 800mm
TOP BLADE
HYDRAULIC ADJUSTMENT RAKE ANGLE + BLADE CLEARANCE MANUAL ADJUSTOR
TOP-BLADE RAKE ANGLE
1/2 - 2°
1/2 - 2°
1/2 - 2°
1/2 - 2°
1/2 - 2°
1/2 - 2°
MOTOR (HP)
15
15
15
20
20
20
OIL-TANK CAPACITY (gallons)
30
30
35
60
80
100
SHIPPING WEIGHT (kgs)
2600
3200
3400
5500
7000
11000
APPROX SIZE OF CASE
2250 x 1350 x 1650
2500 x 1300 x 1500
3150 x 1300 x 1650
3500 x 1760 x 2150
4010 x 1760 x 2150
5000 x 1820 x 2250
