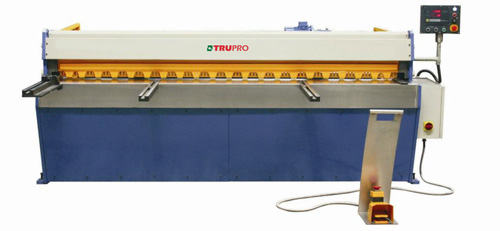

Shearing Machine
l A brake motor driving through a shaft-mounted speed reduction unit and controlled by a selector switch for single or continuous strokes. Provides quiet instantaneous engagement.
l Different from the traditional driving method of mechanical shear. It’s one of the most advanced miniature mechanical shear, and enjoys good reputation both at home and abroad. The low cutting angle and inclined shear direction reduces bowing and twist to a minimum. Blade clearance is easily set by a manually operated quick set device, it’s an ideal true cut machining equipment of metal sheet and nonferrous metal sheet.
model
Shearing thickness
(mm)
Shearing width
(mm)
Shearing angle
Number of stroke
Back gauge range
(mm)
Height of workbench
(mm)
Motor power
Net weight
(kg)
Dimensions
(mm)
3.5×1250
3.5
1250
1° 30’
47
0-650
800
5.5
1450
1860×2210×1180
3.2×1500
3.2
1500
1° 30’
47
0-650
800
5.5
1650
2124×2210×1180
3.2×2000
3.2
2000
1° 45’
47
0-650
800
7.5
1800
2624×2210×1180
2.5×2500
2.5
2500
1°
47
0-650
800
7.5
2080
3124×2210×1180
3.2×2500
3.2
2500
1° 18’
47
0-650
800
7.5
2200
3124×2210×1180
