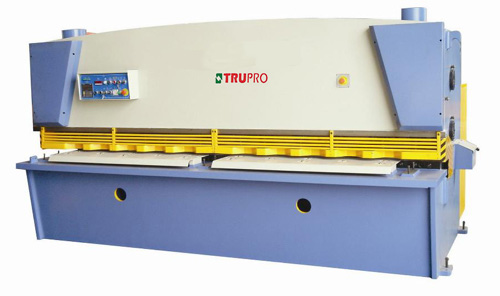

Shearing Machine
l The machine tool is full welded-steel plate construction. After vibration aging treatment, the deformation is minor so that the accuracy can be ensured.
l Maintain good accuracy and improve the quality of shearing by a rolling 3-point support guide.
l Adjust the blade clearance and back gauge quickly and exactly by motor.
l It can use rectangular blade of 4-edge blade, has long service life. Shear angle can be adjusted to reduce distortion of sheet.
l The upper blade within the structure of dumping to facilitate the blanking and improve the quality of shearing.
l Stepless adjustment of blade stroke raise the efficiency of plate shearing.
Model
Number of stroke
(min)
Back gauge range
(mm)
Shear angle
Throat depth
(mm)
Motor power
(KW0
Net weight
(KG)
Dimension
(mm)
6×2500
10-25
20-600
0.5-1.5
100
7.5
6500
3030×2075×1920
6×3200
10-25
20-600
0.5-1.5
100
7.5
7200
3730×3075×1920
6×4000
10-25
20-600
0.5-1.5
100
7.5
8500
4530×2075×2080
6×5000
8-20
20-800
0.5-1.5
100
7.5
13000
5530×2075×2310
6×6000
8-20
20-800
0.5-1.5
100
11
16000
6530×2075×2310
8×2500
10-25
20-600
0.5-1.5
100
11
7000
3040×2075×1920
8×3200
10-25
20-600
0.5-1.5
100
11
8100
4080×2075×1920
12×2500
6-20
20-800
0.5-2
100
18.5
11000
3110×2575×2210
12×3200
6-20
20-800
0.5-2
100
18.5
15000
3810×2575×2420
12×4000
6-20
20-800
0.5-2
100
18.5
17000
4610×2575×2530
16×2500
5-15
20-800
0.5-2.5
100
22
13000
3130×2655×2200
16×4000
5-15
20-800
0.5-2.5
100
30
19000
4630×2655×2570
20×2500
5-15
30-800
0.5-3
100
30
15000
3160×2855×2300
20×4000
4-15
30-800
0.5-3
100
37
23000
4660×2855×2520
25×2500
4-15
40-800
0.5-3
100
37
19000
3160×2900×2700
