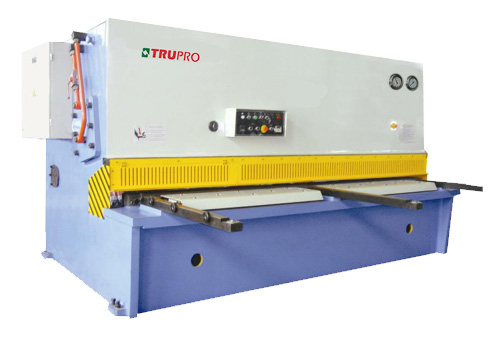

Shearing Machine
l This machine with reasonable and stable construction adopts hydraulic driving system and top blade beam swing operating system. Perfect function. Motorized back gauge with manual micro adjusting mechanism of blade clearance. Light line positioning. Counter and numerical fix device, stepless adjustment of blade stroke raise the efficiency of plate shearing.
model
Max. shear thickness
(mm)
Max. shear width
(mm)
Shear angle
Number of stroke
(min)
Back gauge range
(mm)
Motor power
(KW)
Net weight
(KG)
Dimensions
(mm)
4×2500
4
2500
1° 30’
20
20-480
4
3800
3130*2030*1600
4×3200
4
3200
1° 30’
20
20-600
5.5
5600
3840*2175*1600
4×4000
4
4000
1° 30’
18
20-600
5.5
7000
4640*2320*1600
6×2500
6
2500
1° 30’
18
20-600
7.5
5200
3130*2320*1600
6×3200
6
3200
1° 30’
16
20-600
7.5
6500
3840*2320*1620
6×4000
6
4000
1° 30’
14
20-600
7.5
8500
4630*2495*1700
6×6000
6
6000
1° 30’
6
20-600
11
16800
6645*2530*2250
8×2500
8
2500
1° 30’
14
20-600
11
6200
3140*2345*1620
8×3200
8
3200
1° 30’
12
20-600
11
7300
3850*2345*1620
8×4000
8
4000
1° 30’
10
20-600
11
9600
4630*2495*1700
8×6000
8
6000
1° 30’
6
20-600
15
17600
6650*2845*1700
10×2500
10
2500
1° 30’
14
20-600
15
8500
3230*2550*1805
10×3200
10
3200
1° 30’
12
20-600
15
9800
3940*2550*1805
10×4000
10
4000
1° 30’
10
20-600
15
11000
4740*2750*1915
10×6000
10
6000
1° 30’
6
20-600
18.5
23500
6750*3200*2100
12×2500
12
2500
1° 30’
12
20-900
18.5
9600
3235*3050*2100
12×3200
12
3200
1° 30’
10
20-900
18.5
12000
3945*3050*2100
12×4000
12
4000
1° 30’
8
20-900
18.5
14500
4745*3210*2200
12×6000
12
6000
1° 30’
5
20-900
22
29500
6745*3430*2300
16×2500
16
2500
2°
12
20-900
22
11600
3410*3230*2230
16×3200
16
3200
2°
10
20-900
22
14000
4120*3230*2230
16×4000
16
4000
2°
8
20-900
22
18000
4920*3330*2700
16×6000
16
6000
2°
6
20-900
37
43000
7100*3530*2700
20×2500
20
2500
2° 30’
10
20-900
37
17500
3420*3330*2700
20×3200
20
3200
2° 30’
8
20-900
37
25500
4180*3330*2700
20×4000
20
4000
2° 30’
6
20-900
37
29000
4980*3480*2830
20×6000
20
6000
2° 30’
4
20-900
75
56500
7180*3580*2830
25×2500
25
2500
2° 30’
8
20-900
45
24000
3480*3430*2700
25×3200
25
3200
2° 30’
7
20-900
45
32000
4180*3430*2700
25×4000
25
4000
2° 30’
6
20-900
45
39500
4980*3580*2800
32×2500
32
2500
3°
6
20-900
55
33000
3760*4405*3150
32×3200
32
3200
3°
6
20-900
55
40500
4590*4405*3150
