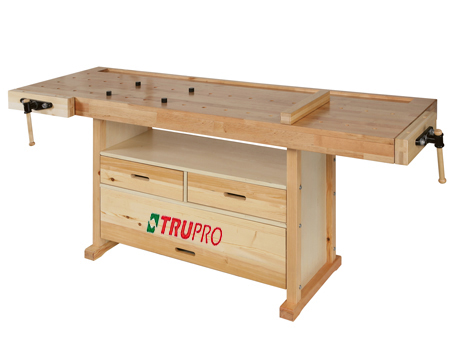

Work Bench
l 1” table top thickness and 3” edge skirt thickness and with a double row of round bench dog holes from every vise location.
l Two ball bearing slides drawer and one big open type drawer..
l Two swivel wooden block vise one side can be used as vise and the other side can be used as block.
l Vise size 17”×4”×4” max. traveling 4”.
l Accessories: four bench dogs and one stopper bar.
l All wooden components are lacquer painted.
Model
STD-8426
Table top thickness
1” (25 mm)
Table edge thickness
3”(75 mm)
Vise size
17”×4”×4” (440×100×100 mm)×2 set
Max. vise travel
4” (100 mm)
Table height adjustment
----
Overall size
2184×710×875mm
Packing size
Body: 2235×735×130 mm
Stand: 1205×640×220 mm
N.W / G.W. / Cuft
Body : 53 kgs /57 kgs / 7.5’
Stand: 39 kgs / 42 kgs / 5.9'
