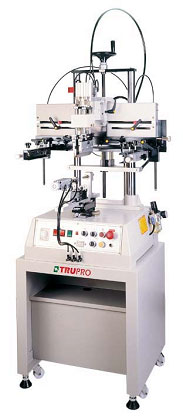

PPR-400B/500B
Pneumatic Type Curve Screen Printing Machine
Curve printing attachments
Flat platen attachnebts with vacuum
Chromatic automatic Positioning
Flat platen attachments with slot
FEATURES: - Precise multi-color printing through synchronized transmission of gear and rack with the use of proper work piece holder, original patterns are accurately reproduced.
- The substrate holder may be adjusted to meet substrate variation, and micrometric adjusted in forward right/left, tilting direction, for accurate squeegee positioning.
- The screen is vertically positioned to prevent ink overflow from the side, therefore lowering ink consumption.
- Superior shock absorbing system provides precise and stable operations multi-color printing.
- Printing stroke can be adjusted laterally to suit various screen sizes.
- Engineering design delivers convenient loading and unloading of work piece with a significant reduction in effort.
PPR-400B / 500B Available optional equipment
*FLAT PLATEN ATTACHMENTS WITH VACUUM
* FLAT PLATEN ATTACHMENTS WITH SLOT
*CHROMATIC AUTOMATIC POSITIONINGModel PPR- 400 B PPR- 500 B Printing Platen 315 mm x 500 mm 400 mm x 570 mm Area Of Flat Printing D250 x W350 mm D300 x W460 Maximum Frame Size(O.D.) 450 mm x 600 mm 450 mm x 700 mm Maximum Thickness Of Workpiece 150 mm 150 mm Diametor Of Curve Printing Ø8-Ø120 mm Ø10-Ø150 mm Compressor Horsepower 1HP 1HP Compressor Pressure 4 - 7 kg / cm2 5 - 7 kg / cm2 Voltage 110V(220V) m 50 / 60 HZ 110V(220V) m 50 / 60 HZ Printing Speed 600 - 1200 P/H 600 - 1200 P/H Machine Dimensions L580 x W650 x H1650 mm L650 x W800 x H1650 mm Machine Weight 130 kg 150 kg
