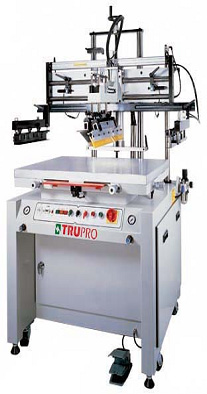

PPR-750A/1000A/1200A
Large-Format Pneumatic Type Flat Screen Printing Machine
Curve printing attachments
Flat platen attachnebts with vacuum
Chromatic automatic Positioning
Flat platen attachments with slot
FEATURES: - The squeegee printing system utilizes an imported linear bearing guide for extremely stable printing.
- Sensor is provided for controlling the printing stroke, which can laterally adjusted to suit various screen plate sizes.
- The workplace is vertically positioned to prevent ink overflow from e side, therefore lowering ink consumption.
- The printing table is radically designed to provide powerful suction with easy control.
- The flood bar can pre-coat ink or coat ink during printing, minimizing screen clogging.
- The printing table is equipped with 3 sets of micrometry adjustment knobs for precision alignment of printing in lengthwise, lateral, and angular directions.
- Pneumatically driven, low-noise levels, low pollution and trouble free performance.
- The printing mechanism elevation is air operated for convenient dispatch of squeegee, flood bar, and screen. Also convenient for ink cleaning.
- With pneumatic-powered hydraulic peel-off system, screen peeling speed and position are adjustable to avoid sticking. Also, it is ideal for large format and dot pattern printing.
- New pneumatically operated printing head lifting design provides convenient replacement of squeegee, flood bar and screen, as well as easy access for cleaning. The device is interlocked with an emergency stop to ensure the safety of the workplace, screen and operator.
Model PPR- 750 A PPR- 1000 A PPR- 1200 A Area Of Flat Printing 600x 700 mm 400 x 950 600 x 1150 mm Maximum Frame Size(O.D.) 900 mm x 1100 mm 750 mm x 1350 mm 900 mm x 1550 mm Maximum Thickness Of Workpiece 80 mm 80 mm 80 mm Compressor Horsepower 3HP 3HP 3HP Compressor Pressure N×19.4 L / min N×22.4 L / min N×24.3 L / min Voltage 110V(220V) m 50 / 60 HZ 110V(220V) m 50 / 60 HZ 110V(220V) m 50 / 60 HZ Printing Speed 450 - 900 P/H 360 - 720 P/H 360 - 720 P/H Machine Dimensions L1240 x W1090 x H1850 mm L1550 x W900 x H1850 mm L1750 x W1090 x H1850 mm Machine Weight 400 kg 450 kg 600 kg
