Printing Equipment

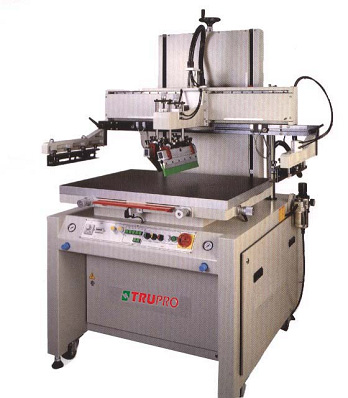

PPR-900FH / PPR-1200FH
Large Format Flat Bed Screen Printers
Applications:
Suitable for screen printing on non-deforming materials in sheet / board / film form.- Adopt American DC motor for squeegee/coater movement, the speed is adjustable.
- Vertical screen lift, adjustable printing height, off-contact device, adjustable printing stroke, vacuum table
- Controlled by PLC
- he safety bar is optional.
Model PPR-900FH PPR-1200FH Table size 700×900 mm 750×1300 mm Max. printing size 600×800 mm 650×1200 mm Max. frame size 1000×1250 mm 1050×1700 mm Substrate height 0~30 mm 0~30 mm Printing speed 500~800 P/H 450~700 P/H Table X/Y adj. ±10 mm ±10 mm Power source 1.5 KW 2.25 KW Compressed air source 6~8KG/cm2 6~8KG/cm2 Dimensions 151×120×200 cm 191×130×210 cm weight 500 kgs 760 kgs
