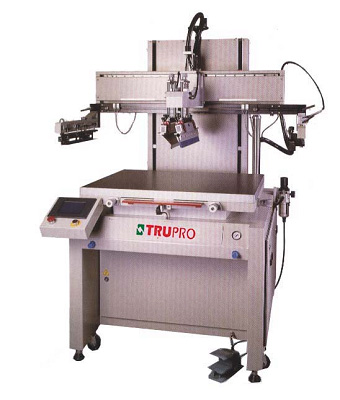

PPR-600FM / PPR-900FM
Flat Bed Screen Printers with Touch Panel
Applications:
Suitable for screen printing on non-deforming materials in sheet / board / film form.- Adopt American DC motor for squeegee/coater movement, the speed is adjustable.
- Vertical screen lift, adjustable printing height, off-contact device, adjustable printing stroke, vacuum table
- All controlling switches/buttons are included in the touch panel.
- The safety bar is optional.
Model PPR-600FM PPR-900FM Table size 500×700 mm 700×900 mm Max. printing size 400×600 mm 600×800 mm Max. frame size 700×950 mm 1000×1250 mm Substrate height 0~30 mm 0~30 mm Printing speed 600~1000 P/H 500~800 P/H Table X/Y adj. ±10 mm ±10 mm Power source 1.5 KW 1.5 KW Compressed air source 6~8KG/cm2 6~8KG/cm2 Dimensions 128×100×170 cm 151×120×200 cm weight 320 kgs 500 kgs
