Printing Equipment

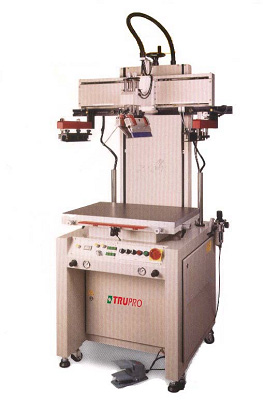

PR-600FX / PPR-900FX
Extra Height Flat Bed Screen Printers
Applications:
Suitable for screen printing on rigid stereo substrates and the non-deforming substrates in /
sheet / board / film form.- Adopt American DC motor for squeegee/coater movement, the speed is adjustable.
- Vertical screen lift, adjustable printing height, off-contact device, adjustable printing stroke, vacuum table
- Extra height for printing head, X/Y adjustment for printing table.
- Controlled by PLC.
- The safety bar is optional.
Model PPR-600FX PPR-900FX Table size 500×700 mm 700×900 mm Max. printing size 400×600 mm 600×800 mm Max. frame size 700×950 mm 1000×1250 mm Substrate height 0~400 mm 0~400 mm Printing speed 550~900 P/H 450~700 P/H Table X/Y adj. ±10 mm ±10 mm Power source 1.5 KW 1.5 KW Compressed air source 6~8KG/cm2 6~8KG/cm2 Dimensions 128×100×210 cm 151×120×240 cm weight 380 kgs 570 kgs
