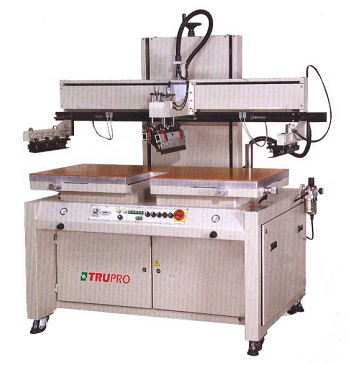

PPR-600FP / PPR-900FP / PPR-1200FP
Large Format Flat Bed Screen Printers for Hard Materials
Applications:
Suitable for screen printing on hard materials such as glass, wooden boards and the stereo
substrate of flat surface.- Adopt American DC motor for squeegee/coater movement, the speed is adjustable.
- Vertical screen lift, adjustable printing height, off-contact device, adjustable printing stroke, vacuum table
- Non-vacuum table with X/Y adjustment.
- Controlled by PLC.
- The safety bar is optional.
Model PPR-600FP PPR-900FP PPR-1200FP Table size 500×700 mm 700×900 mm 750×1300 mm Max. printing size 400×600 mm 600×800 mm 650×1200 mm Max. frame size 700×950 mm 1000×1250 mm 1050×1700 mm Substrate height 0~30 mm 0~30 mm 0~30 mm Printing speed 600~1000 P/H 500~800 P/H 450~700 P/H Table X/Y adj. ±10 mm ±10 mm ±10 mm Power source 0.75 KW 0.75 KW 0.75 KW Compressed air source 6~8KG/cm2 6~8KG/cm2 6~8KG/cm2 Dimensions 128×100×170 cm 151×120×200 cm 195×135×210 cm weight 310 kgs 490 kgs 760 kgs
