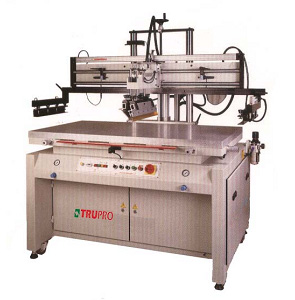

PPR-600F / PPR-800F / PPR-1000F / PPR-1200F
Pneumatic Large Format Flat Bed Screen Printers
Applications:
Suitable for screen printing on non-deforming materials in sheet / board / film form.- All motions are driven by pneumatic cylinders.
- Vertical screen lift, adjustable printing height, off-contact device, adjustable printing stroke, vacuum table
- Non-vacuum table with X/Y adjustment.
- The safety bar is optional.
Model PPR-600F PPR-800F Table size 500×650 mm 700×800 mm Max. printing size 400×600 mm 600×700 mm Max. frame size 700×950 mm 900×1100 mm Substrate height 0~80 mm 0~80 mm Printing speed 600~1000 P/H 450~900 P/H Table X/Y adj. ±10 mm ±10 mm Power source 0.37 KW 0.75 KW Compressed air source 6~8KG/cm2 6~8KG/cm2 Dimensions 115×93×178 cm 124×109×185 cm weight 280 kgs 400 kgs
Model PPR-1000F PPR-1200F Table size 500×1050 mm 700×1250 mm Max. printing size 400×950 mm 600×1150 mm Max. frame size 750×1350 mm 900×1550 mm Substrate height 0~80 mm 0~80 mm Printing speed 400~700 P/H 380~700 P/H Table X/Y adj. ±10 mm ±10 mm Power source 0.75 KW 1.1 KW Compressed air source 6~8KG/cm2 6~8KG/cm2 Dimensions 155×90×185 cm 175×109×185 cm weight 450 kgs 650 kgs
