l The large diameter pressure roller is an external cladding suitable for rubber.
l Pneumatic pressure can be adjusted on the control panel.
l Roller height is electronically positioned with highly accurate read out at the display.
l Speed adjustment also through digital electronic display.
l An additional press roller with independently adjusted pressure.
l Control panel fully integrated with the machine.
l Pressing roller opening over 80mm.
l A single motor drives 2 to 4 pressure rollers.
l An optional electroplated pressure wheel (with optional heating ) is also available.
l In order to adhere raw material with PVC roll, the upper rolled material unwinding device is available for option.

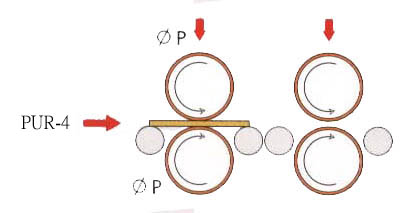

Model
.jpg)
ØP
KW
PUR-2-700
600mm
Ø200
1
PUR-2-1400
1300mm
Ø200
2
PUR-2-1600
1500mm
Ø250
2
PUR-4-700
600mm
Ø200
2
PUR-4-1400
1300mm
Ø250
2.5
PUR-4-1600
1500mm
Ø250
2.5
