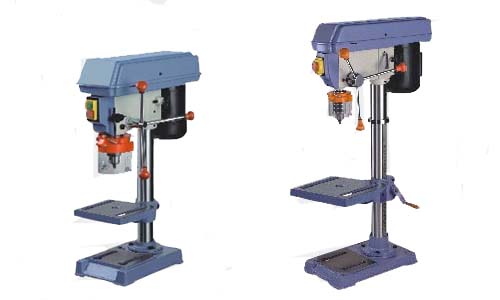

Drilling / Tapping Machine

Model

DM-25013B

DM-25016B

Drill Capacity(mm)

13

16

Chuck Capacity(mm)

13

16

Collar Diameter(mm)

55

55

Swing

10"

10"

Spindle Taper

JT33

MT2

Speed rpm (50Hz)

5(500-2500)

5(500-2500)

Speed rpm(60Hz)

5(620~3100)

5(620~3100)

Spindle Travel(mm)

60

60

Column Diameter(mm)

59.5

59.5

Rack & Pinion

NO

YES

Base Size(mm)

350×215

350×215

Table Size(mm)

198×196

198×196

Motor

400W

400W

Height(mm)

720

720

NW/GW(kg)

27/29

30/32

Packing Size(mm)

550×370×254

550×370×254

Units Per 20' Container

540

540
