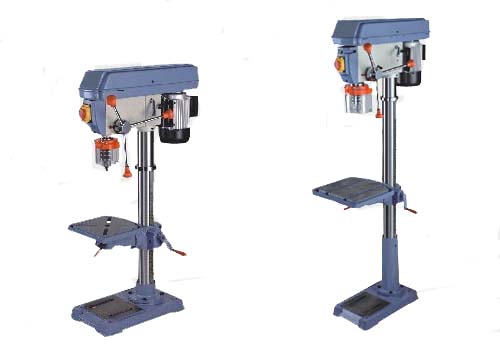

Drilling / Tapping Machine

Model

DM-33016B

DM-33016F

Drill Capacity(mm)

16

16

Chuck Capacity(mm)

16

16

Collar Diameter(mm)

55

55

Swing

13"

13"

Spindle Taper

MT2

MT2

Speed rpm (50Hz)

12(180-2740)

12(180-2740)

Speed rpm(60Hz)

12(250~3100)

12(250~3100)

Spindle Travel(mm)

80

80

Column Diameter(mm)

73

73

Rack & Pinion

YES

YES

Base Size(mm)

450×275

450×275

Table Size(mm)

254×254

254×254

Motor

600W

600W

Height(mm)

990

1630

NW/GW(kg)

52/56

55/60

Packing Size(mm)

895×490×290

1430×510×256

Units Per 20' Container

224

160
