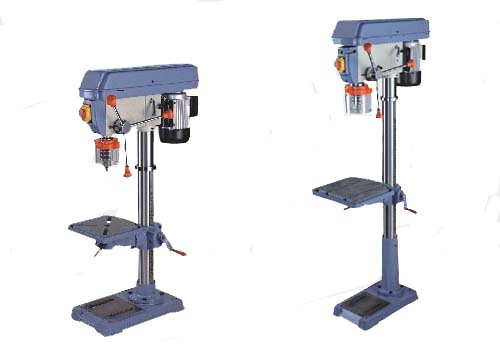

Drilling / Tapping Machine

Model

DM-38016B

DM-38016F

Drill Capacity(mm)

18

18

Chuck Capacity(mm)

16

16

Collar Diameter(mm)

60

60

Swing

15"

15"

Spindle Taper

MT2

MT2

Speed rpm (50Hz)

12(180-2740)

12(180-2740)

Speed rpm(60Hz)

12(250~3100)

12(250~3100)

Spindle Travel(mm)

80

80

Column Diameter(mm)

73

73

Rack & Pinion

YES

YES

Base Size(mm)

485×280

485×280

Table Size(mm)

305×305

305×305

Motor

600W

600W

Height(mm)

1005

1635

NW/GW(kg)

58/63

64/69

Packing Size(mm)

895×490×290

1430×510×256

Units Per 20' Container

224

160
