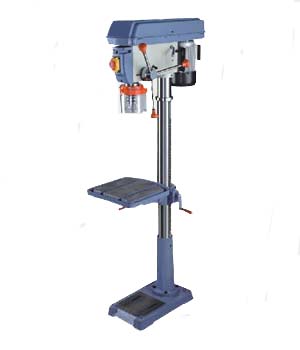

Drilling / Tapping Machine

Model

DM-43016F

DM-43020F

Drill Capacity(mm)

25

25

Chuck Capacity(mm)

16

20

Collar Diameter(mm)

66

75

Swing

17"

17"

Spindle Taper

MT2

MT3

Speed rpm (50Hz)

16(160-3000)

16(160-3000)

Speed rpm(60Hz)

16(200~3630)

16(200~3630)

Spindle Travel(mm)

80

80

Column Diameter(mm)

80

80

Rack & Pinion

YES

YES

Base Size(mm)

485×290

485×290

Table Size(mm)

356×356

356×356

Motor

1000W

1000W

Height(mm)

1635

1635

NW/GW(kg)

81/86

81/86

Packing Size(mm)

1410×540×250

1410×540×250

Units Per 20' Container

144

144
