Model |

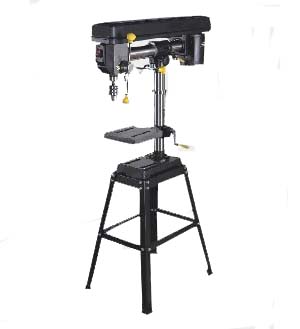

DM-86016B |
|
Drill Capacity(mm) |
16 |
|
Chuck Capacity(mm) |
16 |
|
Spindle Taper |
MT2 |
|
Swing(mm) |
860 |
|
Spindle Travel(mm) |
80 |
|
Speed rpm(50Hz) |
5(500-2500) |
|
Speed rpm(60Hz) |
5(620~3100) |
|
Head Rotate |
360° |
|
Head Tilt |
45°R-90°L |
|
Table Size(mm) |
215×225 |
|
Table Tilt |
45° |
|
Table Swing |
--- |
|
Column Diameter |
59.5 |
|
Rack & Pinion |
YES |
|
Base Size(mm) |
350×215 |
|
Overall Height(mm) |
810 |
|
Motor |
400W |
|
NW/GW(kg) |
40/44 |
|
Packing Size(mm) |
910×360×320 |
|
Units Per 20' Container |
266 |
