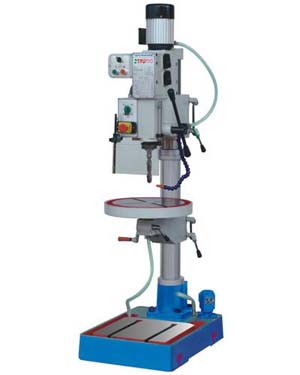

Drilling / Tapping Machine
l Change speed with gears and operate easily.
l High spindle speed with wide speed range.
l Special tool releasing device ensures change tool easily.
l With coolant system and working lamp.
l Ideal choice for single piece, small batch and mass Production for drilling, counter boring, reaming, tapping, spot facing, etc.
Standard accessories:
Special accessories:
l Drill chuck
l Arbor
l Taper sleeve
l Drift
l Wrench
l Angle vice
l Safety guard
Model
DM-5025
Max. drilling capacity
Diameter of column
Spindle travel
Distance spindle axis to column generating line
Max. distance spindle nose to table
Max. distance spindle nose to base
Spindle taper
MT3
Spindle speed range
100~2900 r/min
Spindle speeds series
8
Dimension of worktable surface
Ø
Table travel
Dimension of base
690×
Overall height
Main motor
0.75 kw
Coolant motor
40w
G.W/N.W.
355/
Packing dimension
176×60×
