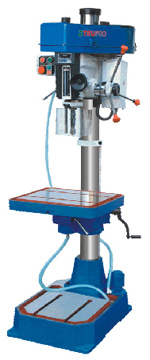

Drilling / Tapping Machine
l The machine adopt belt driving and the noisy low, the machine can drill, enlarge, ream and tap.
l The machine has the twelve-series speed variable feature, which can be widely fit for processing to kinds of common hard & soft material.
l The head and table can rise & down freely, the head could also move reverse, enlarge the range of process.
l The main body is stable & firm, effective working area of table is 540×
l According to the customer demand the machine can drill
“H” Without coolant system “P” With coolant system
Model
DM-32HS
DM-32PS
Max. drilling capacity
Max. tapping capacity
Cast iron: M20 Steel: M16
Cast iron: M20 Steel: M16
Diameter of column
Spindle travel
Distance spindle axis to column generating line
Max. distance spindle nose to table
Max. distance spindle nose to base
Spindle taper
MT3
MT3
Spindle speed range
100~2150 r/min
100~2150 r/min
Spindle speeds series
12
12
Spindle feeds
---
---
Dimension of worktable surface
570×
570×
Table travel
Dimension of base
635×
690×
Overall height
Main motor
1.5 kw
1.5 kw
Coolant motor
---
40w
G.W/N.W.
345/
360/
Packing dimension
82×73×
87×73×
Standard accessories:
Special accessories:
l Drill chuck Ø
l Tap chuckM5~M16
l Arbor
l Taper sleeve
l Drift
l Wrench
l drawbar
l Multi spindle
l Angle vice
l Safety guard
