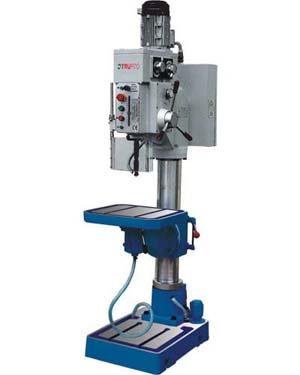

Drilling / Tapping Machine
l New-designed, pleasing appearance, compact construction, wide speed change range, easy to operate.
l Easy operation with its unique workable, and both motor-drive (only DM-5035) or manual-operated lifting device.
l The working table can be rotated 180°and tited±45°also, it is reliable and easy job can be done.
l Equipped with coolant system and tapping mechanism.
l Equipped with short cut and overload protection, its electric system with powerful spindle motor, designed according to IEC standard.
l Special protection device is safe and reliable.
l Ideal choice for single piece, small batch and mass production for drilling, counter boring, reaming, tapping, spot facing, etc.
Model
DM-5030
M-5035
Max. drilling capacity
Max. tapping capacity
M20
M24
Diameter of column
Spindle travel
Distance spindle axis to column generating line
Max. distance spindle nose to table
Max. distance spindle nose to base
Spindle taper
MT3 or MT4
MT4
Spindle speed range
65~2600 r/min
75~2500 r/min
Spindle speeds series
12
12
Spindle feeds
0.1 / 0.2 / 0.3
0.1 / 0.2 / 0.3
Dimension of worktable surface
500×
500×
Table travel
Dimension of base
400×
400×
Overall height
Main motor
1 kw
1.5 kw
Coolant motor
40w
40w
G.W/N.W.
500/
670/
Packing dimension
108×62×
108×62×
Standard accessories:
Special accessories:
l Drill chuck
l Arbor
l Taper sleeve
l Drift
l Eyelet bolts
l Wrench
l Multi spindle
l Angle vice
l Safety guard
