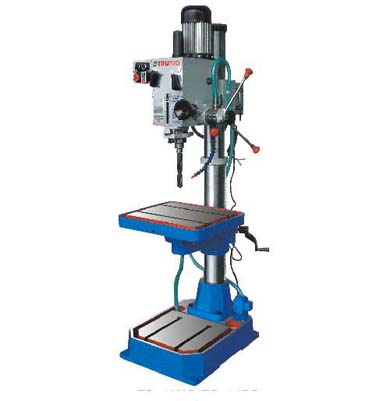

Drilling / Tapping Machine
l The machine adopt gear driving and the driving moment is strong.
l The machine has the six-series speed variable feature, which can be widely fit for processing to kinds of common hard & soft material.
l The motor drive by the gear, which overcome the shortcoming of the belt skid.
l The head and table can rise & down freely, the head could also move reverse, enlarge the range of process.
l The main body is stable & firm, effective working area of table is 540×
l According to the customer demand the machine can drill, enlarge, ream and tap the multi-holes by multi-spindles.
“H” Without coolant system “P” With coolant system
Model
DM-40HS
M-40PS
Max. drilling capacity
Max. tapping capacity
Cast iron:
Cast iron:
Diameter of column
Spindle travel
Distance spindle axis to column generating line
Max. distance spindle nose to table
Max. distance spindle nose to base
Spindle taper
MT4
MT4
Spindle speed range
95~1600 r/min
95~1600 r/min
Spindle speeds series
6
6
Spindle feeds
---
---
Dimension of worktable surface
540×
540×
Table travel
Dimension of base
635×
690×
Overall height
Main motor
1.1 kw
1.1 kw
Coolant motor
---
40w
G.W/N.W.
350/
373/
Packing dimension
82×73×
82×73×
Standard accessories:
Special accessories:
l Drill chuck Ø
l Tap chuck
l Arbor
l Taper sleeve
l Drift
l Wrench
l drawbar
l Multi spindle
l Angle vice
l Safety guard
