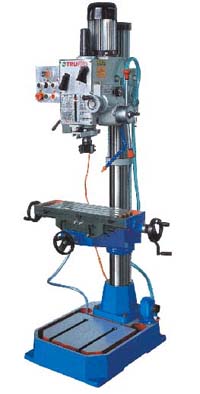

Drilling / Tapping Machine
l The machine spindle can auto-feeding, micro-feeding and hand-feeding.
l Spindle speed change fashionable with high quality and feeding speed change easiness.
l This machine use gear driving system, and it's driving moment is strong enough to drilling, reaming and milling at all kinds of materials.
l The spindle head which can fashionable with high quality otated 360°and tilted±45°.
l The motor was driving by gear which overcome the short coming of belt driving.
l The working scope is larger fashionable with high quality enough for spindle head and worktable (DM-40AHC/DM-40APC) not only up and down, but also rotation around the column.
“H” Without coolant system “P” With coolant system
Model
DM-40AHC / DM-40APC
Max. drilling capacity
40 mm
Max. tapping capacity
Cast iron: M32 Steel: M24
Width of face milling
80 mm
Diameter of vertical milling
22 mm
Diameter of column
115 mm
Spindle travel
110 mm
Distance spindle axis to column generating line
261.5 mm
Max. distance spindle nose to table
745 mm
Max. distance spindle nose to base
1245 mm
Spindle taper
MT4 or R8
Spindle speed range
50~1250 r/min
Spindle speeds series
6
Spindle feed
0.12/0.18/0.25 mm/r
Dimension of worktable surface
585×190 mm
Table travel
370×180×515 mm
Dimension of base
635×460 mm / 690×520 mm
Overall height
1760 mm / 1810 mm
Main motor
0.75 kw
Coolant motor
--- / 40w
G.W/N.W.
360/320kg 390/350kg
Packing dimension
87×73×186 cm / 87×73×191 cm
Standard accessories:
Special accessories:
l Drill chuck Ø16mm
l Cutter Ø80mm
l Arbor
l Taper sleeve
l Drift
l Wrench
l drawbar
l Milling Chuck
l Angle vice
l Safety guard
