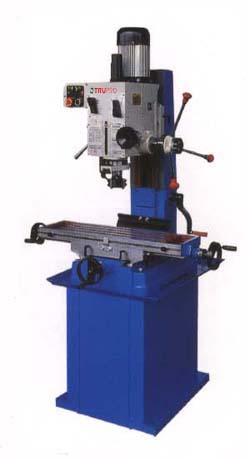

Drilling / Tapping Machine

Model

DM-7045

Max. drilling capacity

45 mm

Width of face milling

80 mm

Diameter of vertical milling

28 mm

Spindle travel

120 mm

Distance spindle axis to column generating line

260 mm

Max. distance spindle nose to table

475 mm

Spindle taper

MT4

Spindle speed range

95~1600 r/min

Spindle speeds series

6

Dimension of worktable surface

730×210 mm or 820×240 mm

Table travel

550×175 mm or 550×200 mm

Overall height

1050 mm

Main motor

750 w

G.W/N.W.

318/278kg

Packing dimension

87×75×112 cm

97×75×112 cm

Standard accessories:

Special accessories:

l           Drill chuck

l           Cutter

l           Arbor

l           Taper sleeve

l           Drift

l           Wrench

l           drawbar

l           Milling Chuck

l           Angle vice

l           Safety guard

l           Stand
