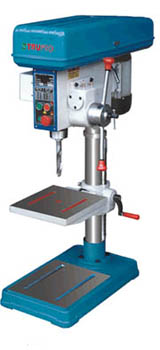

Drilling / Tapping Machine
l Belt driving, low noisy.
l Spindle feed can both automatically or manually, operation easily.
l Auto-feeding can use fixed distance operation, it will go back to the start place automatically.
Model
DM-25B
Max. drilling capacity
Diameter of column
Spindle travel
Spindle feed
0.08/0.09/0.10/0.12
0.08/0.10/0.12/
Distance spindle axis to column generating line
Max. distance spindle nose to table
Max. distance spindle nose to base
Spindle taper
MT3
Spindle speed range
300~1540 r/min
Spindle speeds series
4
Dimension of worktable surface
280×
Dimension of base
600×
Overall height
Main motor
0.75 kw
G.W/N.W.
150/
Packing dimension
84×52×
Standard accessories:
Special accessories:
l Drill chuck
l Arbor
l Taper sleeve
l Drift
l Wrench
l Angle vice
l Safety guard
