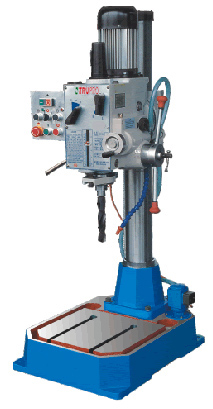

Drilling / Tapping Machine
l Gear Hardened, large driven torque.
l 1 type optional 2-speed motor, wide spindle speed range.
l The machine spindle can auto-feeding, micro-feeding and hand-feeding.
l Spindle speed change and feeding speed change easiness.
l This machine use gear driving system, and it's driving moment is strong enough to drilling, reaming and tapping at all kinds of materials.
l The spindle head which can rotated 360°and tilted±45°.
l The motor was driving by gear which overcome the short coming of belt driving.
l The working scope is large enough for spindle head not only up and down, but also rotation around the column.
“H” Without coolant system “P” With coolant system
Model
DM-40B / DM-40BP
Max. drilling capacity
Max. tapping capacity
Cast iron: M32 Steel: M24
Diameter of column
Spindle travel
Distance spindle axis to column generating line
Max. distance spindle nose to base
Spindle taper
MT4 or R8
Spindle speed range
50~1250 r/min
Spindle speeds series
6
Spindle feed
0.12/0.18/
Dimension of base
635×460 / 690×
Overall height
1400 /
Main motor
0.75 kw
Coolant motor
---/ 40w
G.W/N.W.
300/
Packing dimension
75×73×
Standard accessories:
Special accessories:
l Drill chuck Ø
l Tap chuck
l Arbor
l Taper sleeve
l Drift
l Wrench
l drawbar
l Multi-spindles
l Angle vice
l Safety guard
