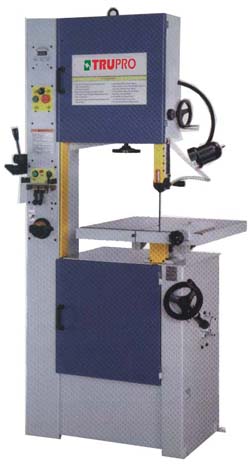

Bandsaw-Vertical
lVariable speeds range from 75FPM~385FPM.
l Digital readout for speed indication.
l Electrical safety control devices:
- Automatic shut off switch when door open.
- Emergency stop and key switch.
l 2.4KVA blade welder that welds a blade width range of 1/8”~3/4”.
l Large size cast iron and precision of grinding face table with replaceable insert.
l Handle gear adjusts the height of cut.
Model
BS-1501VS
BS-1801VS
Depth of throat
15” (380mm)
18” (457mm)
Max. of cutting height
10” (254mm)
11” (280mm)
Table size
23-5/8”×21-5/8”
(600mm×550mm)
23-5/8”×21-5/8”
(600mm×550mm)
Table tilt
15°Right-15°Left
10°Front-10°Back
15°Right-15°Left
10°Front-10°Back
Table height from floor
38” (965mm)
38” (965mm)
Blade width range
1/8”~5/8”
1/8”~5/8”
Blade speeds
75~385FPM
75~385FPM
Blade welder
2.4KVA
2.4KVA
Motor
1.5HP
2HP
Overall dimensions
70”×33”×28”
(1778×838×711mm)
75”×37”×30”
(1905×940×762mm)
Packing size
80”×35”×29”
(2030×890×737mm)
85”×41”×30”
(2160×1040×762mm)
N.W. / G.W.
340kgs/420kgs
368kgs/450kgs
Standard Accessories:
BS-1501VS
BS-1801VS
Main machine with 1.5HP motor
Main machine with 2HP motor
2.4KVA blade welder with 1/8HP grinder
2.4KVA blade welder with 1/8HP grinder
Digital readout
Digital readout
Emergency stop & key switch
Emergency stop & key switch
Working light (with 40W lamp)
Working light (with 40W lamp)
Air chip blower
Air chip blower
Cast iron rip fence
Cast iron rip fence
Saw blade 3/8”-14TPI
Saw blade 1/2”-14TPI
Door opening shut off system
Door opening shut off system
