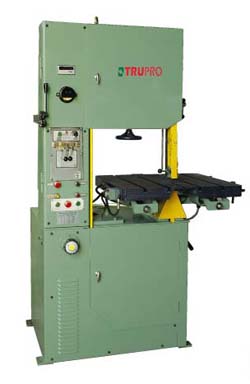

Bandsaw-Vertical
115V control circuit, motor overload and under volt protection, chevron blade guides 1/16” up to 1”, blade tension, variable blade speed 50-5200FPM (15-1575 MPM), rip fence, chip blower, blade welder, grinder, shear and digital speed meter.
Model
BS-2012H
Throat depth
20" (500mm)
Work height
12" (304mm)
Blade width
1/8"~1" (3~25mm)
Blade length
161-3/8" (4100mm)
Blade wheel dimensions
20-1/2" ×1-3/4" (520×44mm)
Blade wheel number
2
Wheel tires
Easily replaceable rubber tires
Table type
Hydraulic powered
Main table size
26-3/4"×29" (679×736mm)
Tilt, main table
30°R, 15°L
Table work height
40-1/2"(1028mm)
Blade drive motor
3HP
Electric controls
Mag motor starters, 115 Volt controls
Blade speed
50-5200FPM (15-1575 MPM)
transmission
Totally enclosed
Blade welder, grinder, shear
1" capacity, standard equipment
Table stroke
13"(330mm)
Machine size
51"×44"×81" (1295×1117×2057mm)
Net weight
1870 lbs (850 kgs)
