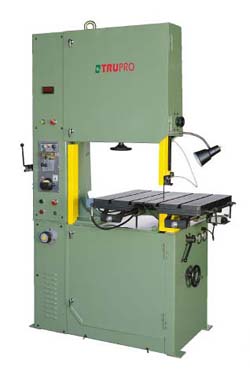

Bandsaw-Vertical
115V control circuit, motor overload and under volt protection, chevron blade guides 1/16” up to 1”, blade tension, variable blade speed 50-5200FPM (15-1575 MPM), rip fence, chip blower, blade welder, grinder, shear and digital speed meter.
Model
BS-2812H
Throat depth
28" (700mm)
Work height
12" (304mm)
Blade width
1/8"~1" (3~25mm)
Blade length
198" (5030mm)
Blade wheel dimensions
28-3/8" ×1-3/4" (720×44mm)
Blade wheel number
2
Wheel tires
Easily replaceable rubber tires
Table type
Hydraulic powered
Main table size
26-3/4"×29" (679×736mm)
Tilt, main table
30°R, 15°L
Table work height
42"(1069mm)
Blade drive motor
3HP
Electric controls
Mag motor starters, 115 Volt controls
Blade speed
50-5200FPM (15-1575 MPM)
transmission
Totally enclosed
Blade welder, grinder, shear
1" capacity, standard equipment
Table stroke
13"(330mm)
Machine size
61-3/8"×44"×90-3/4" (1560×1117×2307mm)
Net weight
2310 lbs (1050 kgs)
