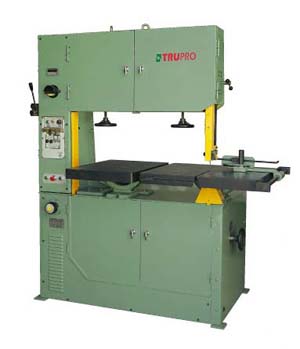

Bandsaw-Vertical
115V control circuit, motor overload and under volt protection, chevron blade guides 1/16” up to 1”, blade tension, variable blade speed 50-5200FPM (15-1575 MPM), rip fence, chip blower, blade welder, grinder, shear and digital speed meter.
Model
BS-4012F
Throat depth
39-3/8" (1000mm)
Work height
12-3/8" (314mm)
Blade width
1/8"~1" (3~25mm)
Blade length
194-7/8" (4950mm)
Blade wheel dimensions
17" ×1-3/4" (430×44mm)
Blade wheel number
4
Wheel tires
Easily replaceable rubber tires
Table type
fixed
Main table size
26-3/4"×29" (679×736mm)
Auxiliary table size
26-3/4"×18-7/8" (679×477mm)
Tilt, main table
45°R, 15°L
Table work height
40-1/8"(1019mm)
Blade drive motor
4HP
Electric controls
Mag motor starters, 115 Volt controls
Blade speed
50-5200FPM (15-1575 MPM)
transmission
Totally enclosed
Blade welder, grinder, shear
1" capacity, standard equipment
Machine size
70-1/2"×42-1/2"×75" (1790×1079×1905mm)
Net weight
2596 lbs (1180 kgs)
