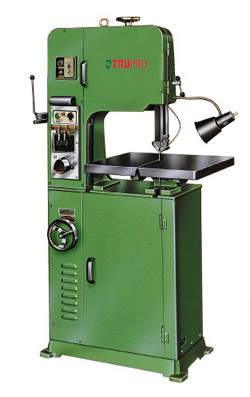

Bandsaw-Vertical
BS-360
Vertical Variable Speed Bandsaw
Blade welder, shear, grinder, work light, blade guides, chip blower, cleaning brush, infinitely variable speed, rubber bonded saw wheels, magnetic switches.
Model
BS-360
Height under guide
7-7/8" (200mm)
Throat, band to column
14-1/8" (360mm)
Blade speed
82-384 ft/min (25-117m/min)
Blade width
1/8"~1/2" (3~13mm)
Blade length
119-1/8" (3025mm)
Size table
22-1/4"×19-5/8" (565×500mm)
Tilt, main table
10°F, 10°B (15°R, 15°L)
Motor
1HP
No. of "T" slots in table
None
Machine size
36-5/8"×22"×67-3/8" (930×560×1710mm)
Net weight
726 lbs (330 kgs)
Ship weight
902 lbs (410 kgs)
Packing size
40-1/2"×27-1/2"×74-3/4" (1030×700×1900mm)
