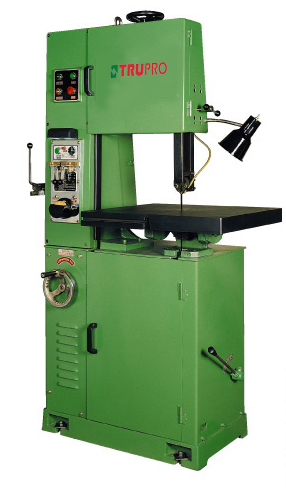

Bandsaw-Vertical
BS-400
Vertical Variable Speed Bandsaw
Blade welder, shear, grinder, work light, blade guides, chip blower, cleaning brush, infinitely variable speed, rubber bonded saw wheels, rip fence,110 volt control and lighting.
Model
BS-400
Height under guide
9-3/4" (250mm)
Throat, band to column
15-3/4" (400mm)
Blade speed
65-1233 ft/min (20-376m/min)
Blade width
1/8"~5/8" (3~15mm)
Blade length
129-7/8" (3300mm)
Size table
23-5/8"×22" (600×560mm)
Tilt, main table
15°F,15°B (15°R, 15°L)
Motor
2HP
Machine size
40"×24-3/4"×74" (1015×630×1880mm)
Net weight
1210 lbs (550 kgs)
Ship weight
1408 lbs (640 kgs)
Packing size
44"×31-1/2"×78-3/4" (1120×800×2000mm)
Optional accessories:
1. Circle cutting attachment.
2. Miter gauge.
