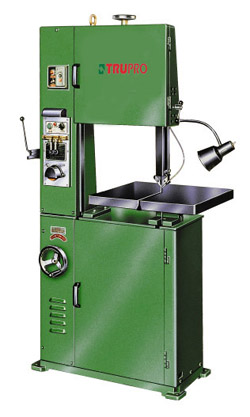

Bandsaw-Vertical
BS-450
Vertical Variable Speed Bandsaw
Blade welder, shear, grinder, work light, blade guides, chip blower, cleaning brush, infinitely variable speed, rubber bonded saw wheels, magnetic switches.
Model
BS-450
Height under guide
10" (254mm)
Throat, band to column
18" (450mm)
Blade speed
82-384 ft/min (25-117m/min)
Blade width
1/8"~5/8" (3~15mm)
Blade length
140-1/2" (3570mm)
Size table
22-1/4"×19-5/8" (565×500mm)
Tilt, main table
10°F,10°B (15°R, 15°L)
Motor
1HP
Machine size
40-1/2"×22"×73-5/8" (1030×560×1870mm)
Net weight
836 lbs (380 kgs)
Ship weight
1012 lbs (460 kgs)
Packing size
44-1/2"×27-1/2"×80-3/4" (1120×700×2050mm)
