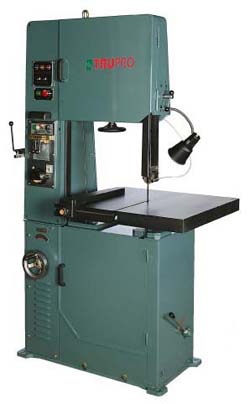

Bandsaw-Vertical
BS-500
Vertical Variable Speed Bandsaw
Blade welder, shear, grinder, work light, blade guides, chip blower, cleaning brush, infinitely variable speed, rubber bonded saw wheels, thermal overload switches, rip fence, 110 volt control and lighting.
Model
BS-500
Height under guide
14-1/8" (360mm)
Throat, band to column
20" (510mm)
Blade speed
82-1496 ft/min (25-456m/min)
Blade width
1/8"~1" (3~25mm)
Blade length
160-1/4" (4070mm)
Size table
29-1/8"×26-3/4" (740×680mm)
Tilt, main table
15°F,15°B (15°R, 15°L)
Motor
2HP
Machine size
47-3/8"×28-3/4"×80-3/4" (1210×730×2050mm)
Net weight
1320 lbs (600 kgs)
Ship weight
1540 lbs (700 kgs)
Packing size
51-1/2"×34-5/8"×88-5/8" (1310×880×2200mm)
Optional accessories:
1. Circle cutting attachment.
2. Miter gauge.
