Bandsaw-Vertical
BS-600

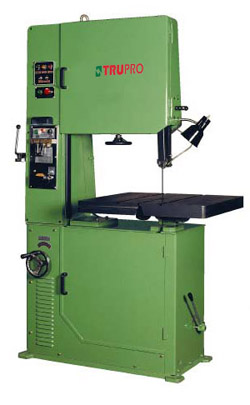

Vertical Variable Speed Bandsaw
Blade welder, shear, grinder, work light, blade guides, chip blower, cleaning brush, infinitely variable speed, rubber bonded saw wheels, thermal overload switches, rip fence, 110 volt control and lighting.
Model
BS-600
Height under guide
12" (304mm)
Throat, band to column
24" (600mm)
Blade speed
82-1496 ft/min (25-456m/min)
Blade width
1/8"~1" (3~25mm)
Blade length
172-1/4" (4376mm)
Size table
29-1/8"×26-3/4" (740×680mm)
Tilt, main table
15°F,15°B (5°R, 5°L)
Motor
2HP
Machine size
51-1/8"×30-3/8"×81-1/8" (1300×1770×2060mm)
Net weight
1474 lbs (670 kgs)
Ship weight
1694 lbs (770 kgs)
Packing size
56-3/8"×34-5/8"×87-3/8" (1430×880×2220mm)
Optional accessories:
1. Circle cutting attachment.
2. Miter gauge.
