Bandsaw-Vertical
BS-700

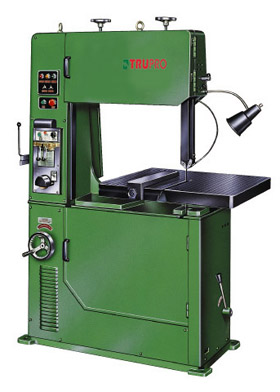

Vertical Variable Speed Bandsaw
Blade welder, shear, grinder, work light, blade guides, chip blower, cleaning brush, infinitely variable speed, rubber bonded saw wheels, thermal overload switches, rip fence, 110 volt control and lighting.
Model
BS-700
Height under guide
14-1/8" (360mm)
Throat, band to column
28-1/8" (715mm)
Blade speed
65-1292 ft/min (20-394m/min)
Blade width
1/8"~1" (3~25mm)
Blade length
161" (4090mm)
Size table
29-1/8"×26-3/4" (740×680mm)
Tilt, main table
15°F,15°B (15°R, 15°L)
Motor
2HP
Machine size
55-7/8"×29-1/2"×80-3/8" (1420×750×2040mm)
Net weight
1540 lbs (700 kgs)
Ship weight
1760 lbs (800 kgs)
Packing size
60-5/8"×36-5/8"×82-5/8" (1540×930×2100mm)
Optional accessories:
1. Circle cutting attachment.
2. Miter gauge.
