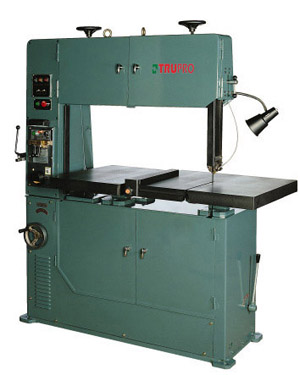

Bandsaw-Vertical
Blade welder, shear, grinder, work light, blade guides, chip blower, cleaning brush, infinitely variable speed, rubber bonded saw wheels, thermal overload switches, rip fence, 110 volt control and lighting.
Model
BS-1000
Height under guide
14-1/8" (360mm)
Throat, band to column
39-3/4" (1010mm)
Blade speed
65-1292 ft/min (20-394m/min)
Blade width
1/8"~1" (3~25mm)
Blade length
183-7/8" (4670mm)
Size table
29-1/8"×26-3/4" (740×680mm)
Size of auxiliary table
26-3/4"×18-7/8" (679×477mm)
Tilt, main table
15°F,15°B (15°R, 15°L)
Motor
2HP
Machine size
66-1/2"×29-7/8"×74-3/8" (1690×760×1890mm)
Net weight
1716 lbs (780 kgs)
Ship weight
1936 lbs (880 kgs)
Packing size
71-5/8"×35-3/4"×82-5/8" (1820×910×2100mm)
Optional accessories:
1. Circle cutting attachment.
2. Miter gauge.
