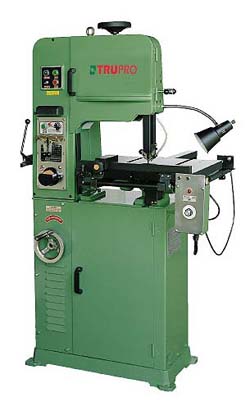

Bandsaw-Vertical
BS-360D
Vertical Variable Speed Bandsaw With Auto-Sliding Table
Blade welder, shear, grinder, work light, blade guides, chip blower, cleaning brush, rip fence, infinitely variable speed, rubber bonded saw wheels, magnetic switches and electric powered table.
Model
BS-360D
Height under guide
6-1/2" (165mm)
Throat, band to column
14-1/8" (360mm)
Blade speed
82-384 ft/min (25-117m/min)
Blade width
1/8"~1/2" (3~13mm)
Blade length
119-1/8" (3025mm)
Size table
22-1/4"×19-5/8" (565×500mm)
Tilt, main table
5°R, 5°L
Motor
1HP
No. of "T" slots in table
None
Table stroke
9-1/4" (235mm)
Table feed operation
Electric powered
Machine size
36-5/8"×37-3/8"×67-1/4" (930×950×1710mm)
Net weight
770 lbs (350 kgs)
Ship weight
946 lbs (430 kgs)
Packing size
40-1/2"×27-1/2"×74-3/4" (1030×700×1900mm)
