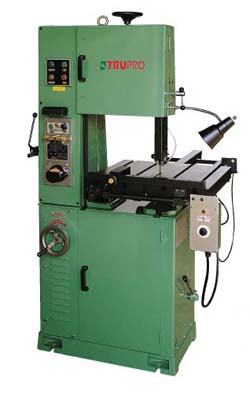

Bandsaw-Vertical
Blade welder, shear, grinder, work light, blade guides, chip blower, cleaning brush, rip fence, 4 “T” slots in table, infinitely variable speed, rubber bonded saw wheels, magnetic switches and electric powered table, 110 volt control and lighting.
Model
BS-400D
Height under guide
8-1/2" (215mm)
Throat, band to column
15-3/4" (400mm)
Blade speed
65-1233 ft/min (20-376m/min)
Blade width
1/8"~5/8" (3~15mm)
Blade length
129-7/8" (3300mm)
Size table
23-5/8"×22" (600×560mm)
Tilt, main table
5°R, 5°L
Motor
2HP
No. of "T" slots in table
4
Table stroke
10-1/4" (260mm)
Table feed operation
Electric powered
Machine size
40"×40-7/8"×74" (1015×1040×1880mm)
Net weight
1276 lbs (580 kgs)
Ship weight
1474 lbs (670 kgs)
Packing size
39-3/4"×35-7/8"×78-3/4" (1010×910×2000mm)
Optional accessories:
1. Work holding jaw.
2. Circle cutting attachment.
3. Miter gauge.
