Bandsaw-Vertical

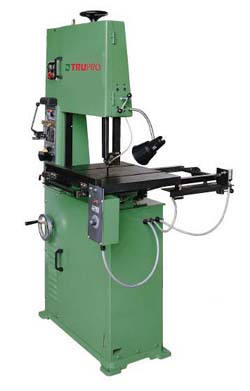

BS-450D
Vertical Variable Speed Bandsaw With Auto-Sliding Table
Blade welder, shear, grinder, work light, blade guides, chip blower, cleaning brush, rip fence, infinitely variable speed, rubber bonded saw wheels, magnetic switches and electric powered table.
Model
BS-450D
Height under guide
8-1/2" (215mm)
Throat, band to column
18" (450mm)
Blade speed
82-384 ft/min (25-117m/min)
Blade width
1/8"~5/8" (3~15mm)
Blade length
140-1/2" (3570mm)
Size table
22-1/4"×19-5/8" (565×500mm)
Tilt, main table
5°R, 5°L
Motor
1HP
No. of "T" slots in table
None
Table stroke
9-1/4" (235mm)
Table feed operation
Electric powered
Machine size
40-1/2"×37-3/8"×73-5/8" (1030×950×1870mm)
Net weight
902 lbs (410 kgs)
Ship weight
1078 lbs (490 kgs)
Packing size
44-1/2"×27-1/2"×80-3/4" (1130×700×2050mm)
