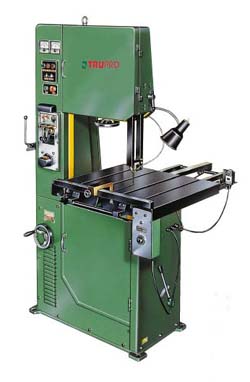

Bandsaw-Vertical
Blade welder, shear, grinder, work light, blade guides, chip blower, cleaning brush, rip fence, 4 “T” slots in table, infinitely variable speed, rubber bonded saw wheels, magnetic switches and electric powered table, 110 volt control and lighting.
Model
BS-500D
Height under guide
12-7/8" (330mm)
Throat, band to column
20" (510mm)
Blade speed
82-1496 ft/min (25-456m/min)
Blade width
1/8"~1" (3~25mm)
Blade length
160-1/4" (4070mm)
Size table
29-1/8"×26-3/4" (740×680mm)
Tilt, main table
5°R, 5°L
Motor
2HP
No. of "T" slots in table
4
Table stroke
12-1/2" (320mm)
Table feed operation
Electric powered
Machine size
47-3/8"×46-3/8"×80-3/4" (1210×1180×2050mm)
Net weight
1386 lbs (630 kgs)
Ship weight
1606 lbs (730 kgs)
Packing size
44-1/2"×37-3/4"×87-3/4" (1130×960×2220mm)
Optional accessories:
1. Work holding jaw.
2. Circle cutting attachment.
3. Miter gauge.
