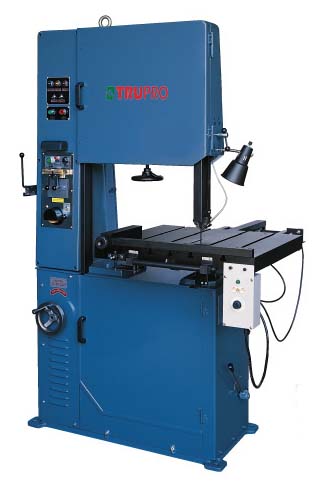

Bandsaw-Vertical
Blade welder, shear, grinder, work light, blade guides, chip blower, cleaning brush, rip fence, 4 “T” slots in table, infinitely variable speed, rubber bonded saw wheels, magnetic switches and electric powered table, 110 volt control and lighting.
Model
BS-600D
Height under guide
10-3/4" (274mm)
Throat, band to column
24" (600mm)
Blade speed
82-1496 ft/min (25-456m/min)
Blade width
1/8"~1" (3~25mm)
Blade length
172-1/4" (4376mm)
Size table
29-1/8"×26-3/4" (740×680mm)
Tilt, main table
5°R, 5°L
Motor
2HP
No. of "T" slots in table
4
Table stroke
12-1/2" (320mm)
Table feed operation
Electric powered
Machine size
51-1/8"×46"×81-1/8" (1300×1170×2060mm)
Net weight
1540 lbs (700 kgs)
Ship weight
1760 lbs (800 kgs)
Packing size
54-3/4"×34-5/8"×89" (1390×880×2260mm)
Optional accessories:
1. Work holding jaw.
2. Circle cutting attachment.
3. Miter gauge.
