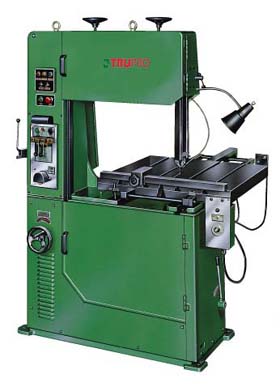

Bandsaw-Vertical
Blade welder, shear, grinder, work light, blade guides, chip blower, cleaning brush, rip fence, 4 “T” slots in table, infinitely variable speed, rubber bonded saw wheels, magnetic switches and electric powered table, 110 volt control and lighting.
Model
BS-700D
Height under guide
12-5/8" (325mm)
Throat, band to column
28-1/8" (715mm)
Blade speed
65-1292 ft/min (20-394m/min)
Blade width
1/8"~1" (3~25mm)
Blade length
161" (4090mm)
Size table
29-1/8"×26-3/4" (740×680mm)
Tilt, main table
5°R, 5°L
Motor
2HP
No. of "T" slots in table
4
Table stroke
12-1/2" (320mm)
Table feed operation
Electric powered
Machine size
55-7/8"×47-1/4"×80-3/8" (1420×1200×2040mm)
Net weight
1606 lbs (730 kgs)
Ship weight
1826 lbs (830 kgs)
Packing size
52-3/4"×34-5/8"×82-1/4" (1340×880×2090mm)
Optional accessories:
1. Work holding jaw.
2. Circle cutting attachment.
3. Miter gauge.
