4 Side Moulder

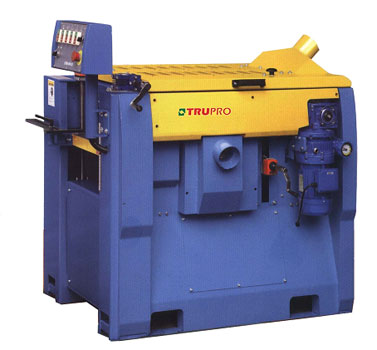

MOU-412
4-side Planer / Moulder
- Three phase motor drive.
- Powerful motor drive for each spindle.
- Digital position control for accurate and easy setting.
- 7000 rpm high spindle speed.
- Compact construction. Maximum stability.
- Variable feed speed.
- See-thru top guard.
Model MOU-412 Planning Width 14-5/16" (365mm) Depth 7/16" ~9" (12~230mm) 2-Side Planning/Moulding Width 13-5/8" (346mm) Depth 7/16" ~9" (12~230mm) 4-side Planning/Moulding Width 0~12" (0~306mm) Depth 7/16" ~4" (12~100mm) Top horizontal spindle Width 17-15/16" (455mm) Max. moulding depth 3/4" (19mm) Max. planning depth 5/16" (8mm) Speed 7000 rpm Cutterhead diameter 2-3/4" (72mm) Motor 7-1/2 HP Bottom horizontal spindle Width 13-5/8" (346mm) Max. moulding depth 3/16" (5mm) Max. planning depth 1/4" (6mm) Speed 7000 rpm Cutterhead diameter 2-3/4" (72mm) Motor 5 HP Right & left vertical spindles Max. cutting height 4" (100mm) Max. cutting depth 13/16" (21mm) Spindle diameter 1-1/4" (31.75mm) Max. cutter head diameter 5-1/2" (140mm) Speed 7000 rpm Cutter head diameter 3-1/2" (90mm) Motor 4.1 HP×2 Table Area 1125×685 mm Elevation 230 mm Power table(raise) 120W×1 Feed system Speed (variable) 11-52 ft/min Motor 1/2 HP×1 Dust hood outlet 4" ×4 Machine size Machine dimensions 1485×1265×1216 mm Packing dimensions 1350×1140×1130 mm Net weight 635 kgs Gross weight 730 kgs 1. Infeed and outfeed table extension
- The moulder is available to equip with table extensions at infeed and outfeed end. They provide solid support for big wood.
- The infeed and outfeed table are made of steel plate. The measures: 1210(L)×362(W)
2. infeed fence
- The infeed fence is extruded from aluminum alloy and anode treated for durability.
- Standard length of infeed fence is 1250 mm.
