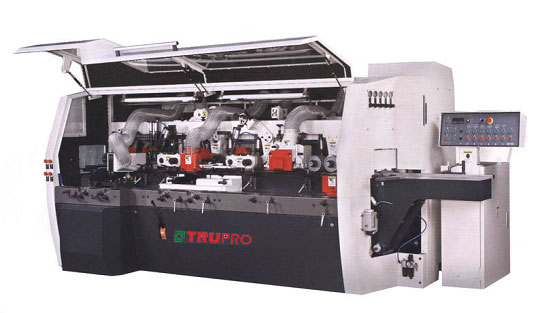

4 Side Moulder
MOU-230GS
Multiple Spindle Vertical Slicer Machine
- The MOU-230GS series not only combines the features of traditional 4-side moulder, but also provides slicing function. The series is designed for saving machining time while greatly upgrading throughput. The MOU -230GS is a special purpose function. It’s applicable for composite parquet, Venetian blind, window curtain and air tight window, etc.
Multiple sheets slicing
The two vertical spindles can be fitted with multiple sawblades for producing multiple sheets at a time
Scoring sawblades
The machine is available to equip with additional scoring sawblades for slicing. The scoring blades may avoid tearing problem while upgrading slicing speed.
Sawblade cleaning device
The cleaning solvent reservoir provides solvent flushing together with outside cooling air to the blades for cleaning off the dusts existed on the blades. It also helps to reduce heat generation on the blades. The cleaning device permits time setting as desired.Sawblade cooling systemAn air cooling system is applied for cooling blades during slicing, that reduces blades heat generation. A combination of cooling through spindle and outside air cooling for blades feature excellent cooling effect. The specially designed air cooling system not only greatly extends blades life but also ensures high cutting accuracy.
Model MOU-230GS Max. working width 60~180 mm Product thickness range 2~20 mm Max. sheets of slicing Max. 5 sheets Spindle motor 7.5 HP~10 HP Scoring sawblade motor 10 HP (15 HPOptional) Slicing blade motor 20 HP (30 HP, 40 HPOptional) Feed drive motor 5 HP Feed speed 4~24 M/min Spindle speed 6000 RPM Scoring blade spindle speed 3000 RPM Slicing blade spindle speed 3000 RPM (Inverter control 2800~6000RPM Optional) Infeed table length 1.2 M
