4 Side Moulder

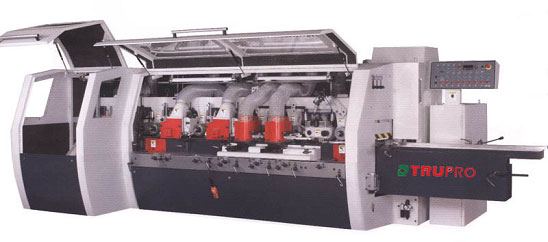

MOU-230UP
4-Side Moulder For Parquet
-
The MOU -230UP series is a special purpose 4-side moulder. Exclusively designed for holding type parquet, the MOU -230UP is especially ideal for the production of composite parquet. It integrates many outstanding features. Equip with right/left universal spindle and Germany-imported high frequency motor. High accuracy slots and tenons can be achieved at any angle, assuring the outstanding tightness for parquet jointing.
Special spindle for lock-joint parquet
The mechanism consists of right/left universal spindle, which is driven by Germany high frequency motor. Spindle speed is 6000~9000 RPM. Independent and drive design. The head can be swiveled 360degree, ensuring outstanding lock-joint accuracy.
Driven Table Roller
Driven table rollers reduce table wear out and guarantee the feed through of workpiece without getting stuck.
Drive Infeed Table Roller
The drive infeed table roller provides maximum smoothness of workpiece feeding for all types of wood material, regardless of highly moisture or extra hard materials.
Inverter Controlled Feed System
Feed speed via inverter provides positive feed. This machine can adjust the feeding speed according to the actual need. The speed range is 6-36 M/min.
Spindle
The spindle is supported by two pair of bearing to ensure accurate performance under high speed rotation.-
Model MOU-230UP Max. working width 10-230 mm Max. working height 10-100 mm Infeed table length 2 M Spindle motor horse power 7.5 HP / 10 HP Universal spindle power×2 3 HP×2 (Germany high freq. motor) Feeding power 7.5 HP Feeding speed 6~36 M/min Diameter of spindle 40 mm/50 mm Spindle speed 6,000 RPM Universal spindle 6000~9000 RPM Tool diameter of horizontal spindle 100-150 mm Tool diameter of vertical spindle 100-180 mm Tool diameter of horizontal spindle 100-180 mm Adjustment range of straightening table 10 mm Adjustment of vertical spindle 50 mm Adjustment of horizontal spindle 30 mm Diameter of feeding roller 140 x Ø35 mm Width of steel feed roller 25 mm Width of steel feed rollers opposite left spindle 20 mm Width of rubber feed roller 50 mm Max. cutting capacity for 1st bottom spindle 10 mm Max. cutting capacity for 2st right vertical spindle 10 mm
