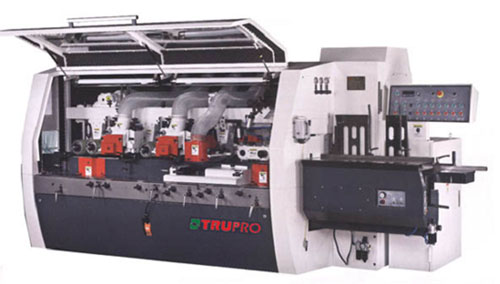

4 Side Moulder
MOU-E4 / MOU-E5 / MOU-E6
4-Side Moulder
Driven Table Roller
Driven table rollers reduce table wear out and guarantee the feed through of workpiece without getting stuck.
Drive Infeed Table Roller
The drive infeed table roller provides maximum smoothness of workpiece feeding for all types of wood material, regardless of highly moisture or extra hard materials.
Inverter Controlled Feed System
Feed speed via inverter provides positive feed. This machine can adjust the feeding speed according to the actual need. The speed range is 6-36 M/min.
Spindle
The spindle is supported by two pair of bearing to ensure accurate performance under high speed rotation.
Automatic Feeding Device (Optional)
This device can feed the workpiece into the machine for processing instead of hand feed. It can increase the production and keep the operator from danger. The most important is the operator has enough time to choose the better surface to process and get the perfect finish.
Model MOU-E4 MOU-E5 MOU-E6 Max. working width 15-230 mm 15-230 mm 15-230 mm Max. working height 10-120 mm 10-120 mm 10-120 mm Infeed table length 1.6 M 1.6 M 1.6 M Motor horse power 7.5 HP / 10 HP 7.5 HP / 10 HP 7.5 HP / 10 HP Feeding power 4 HP 4 HP 4 HP Feeding speed 6~36 M/min 6~36 M/min 6~36 M/min Diameter of spindle 40 mm 40 mm 40 mm Spindle speed 6,000 RPM 6,000 RPM 6,000 RPM Tool diameter of first bottom spindle 100-150 mm 100-150 mm 100-150 mm Tool diameter of vertical spindle 100-180 mm 100-180 mm 100-180 mm Tool diameter of horizontal spindle 100-180 mm 100-180 mm 100-180 mm Adjustment range of straightening table and edge-joint 10 mm 10 mm 10 mm Adjustment of vertical spindle 50 mm 50 mm 50 mm Adjustment of horizontal spindle 30 mm 30 mm 30 mm Diameter of feeding roller 140 x Ø35 mm 140 x Ø35 mm 140 x Ø35 mm Width of steel feed roller 25 mm 25 mm 25 mm Width of steel feed rollers opposite left spindle 20 mm 20 mm 20 mm Width of rubber feed roller 50 mm 50 mm 50 mm
