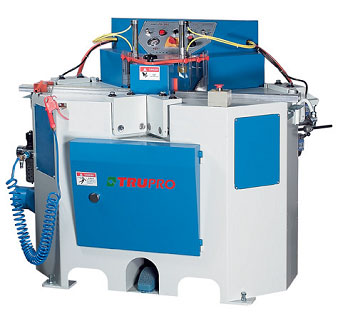

45 Degree Saw
COS-160
Horizontal Double Miter Saw For Wood
FEATURES:
- Alternatively sawblades straight feed in horizontal direction provides width of cut up to 160mm
- Equipped with wear-resistant linear motion guides for accurate angle of cut.
- Allows for right or left cutting individually.
- Right and left cutting alternatively fully eliminates waste of workpiece.
- Cutting angle is easy to adjust.
- Fence and sawblade clearance are adjustable to ensure burr-fee surface.
Model COS-160 Cutting angle 45° Cutting width 160 mm Cutting height 70 mm Sawblade sizes Ø10"' x Ø 1"' x 2.0 mm x 100T Spindle speed 3600 RPM Spindle motors 1HP x 2 Clamping cylinders 2 Vertical clamps Cutting method Horizontal alternative cutting Table height 850 mm In-feed extension table 1220 mm Out-feed extension table 1525 mm N.W. / G.W. 320 / 405 kg Machine dimensions 1375 x 775 x 1140 mm Packing dimensions 1600 x 890 x 1330 mm Production rate About 420 cuts per hour
